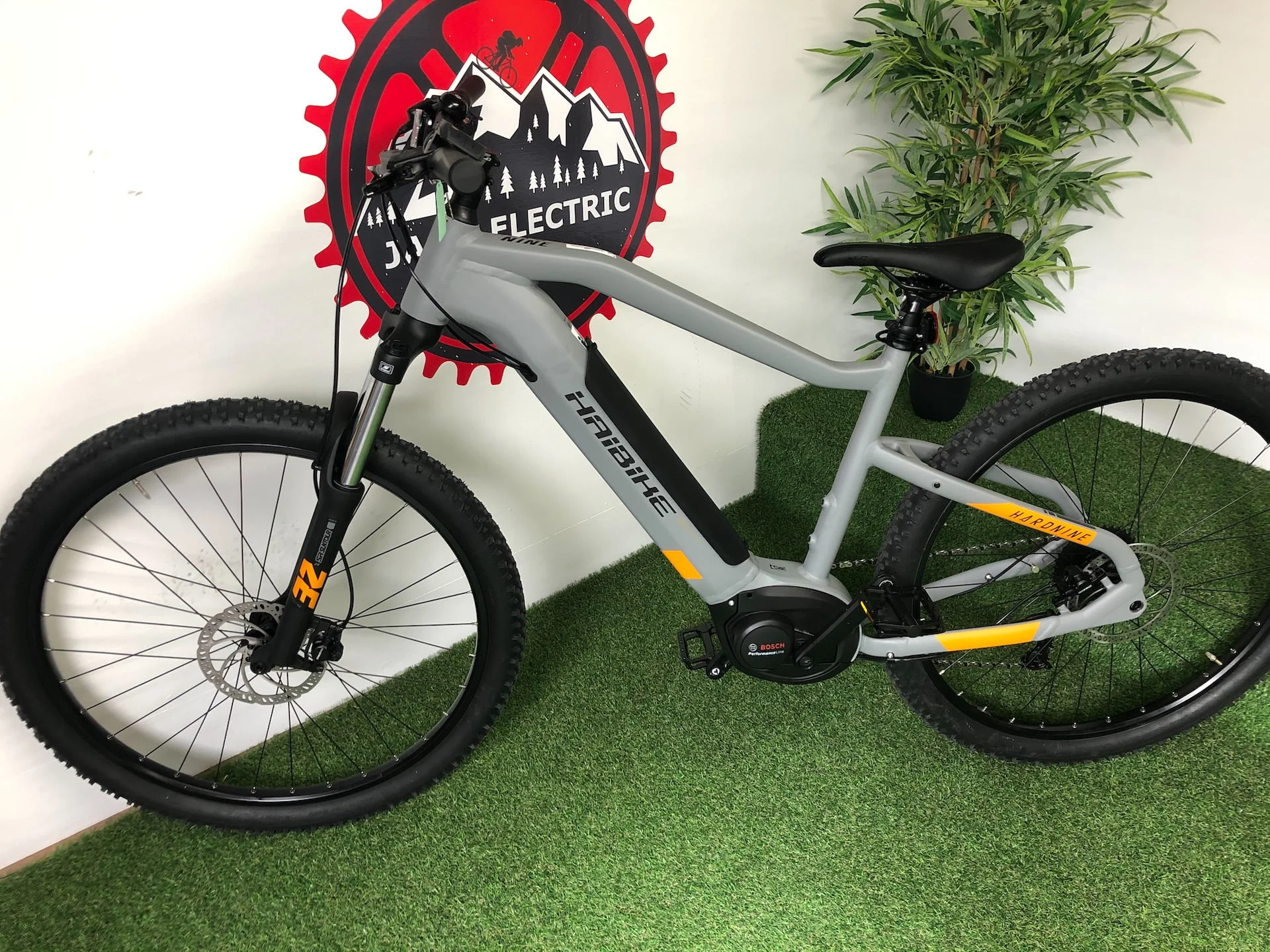

The 29″ HardNine 4 impresses with a strong drive unit and a well thought-out component mix. The efficient and versatile Bosch Performance Line motor provides dynamic acceleration and always offers you the right level of assistance. Shimano shift components and powerful disc brakes ensure smooth and safe off-roading fun.
KEY FEATURES
- FRAME MATERIAL: Aluminium
- DRIVE UNIT: Bosch Performance Line, 65Nm, 25km/h
- BATTERY: Bosch PowerTube 400Wh
- FORK: SR Suntour XCM32 Boost DS, Travel: 120mm
- Wheels 29″
SPECIFICATIONS

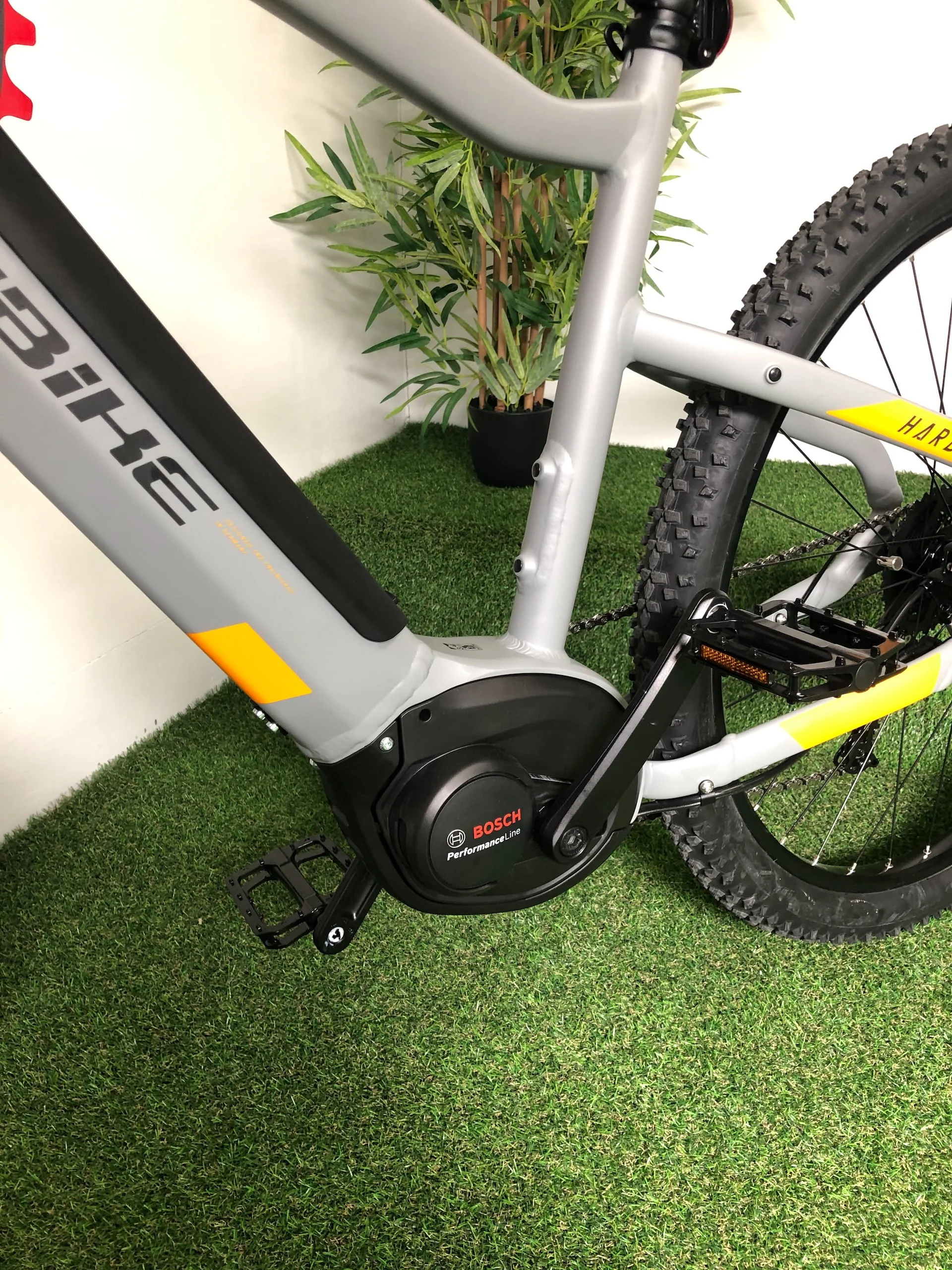

- ENGINE: Bosch, Performance Line , 250W, 65 Nm, 25 km/h
- DISPLAY: Bosch, Purion
- BATTERY: Bosch, PowerTube, 400 Wh
- FRAME FAMILY: Haibike, HardNine Gen3 Intube, Aluminium 6061
- FORK: SR Suntour, XCM32 Boost DS, Steel spring/oil, Travel= 120 mm, Aluschaft 1 1/8 – 1 1/2″ tapered, 15 x 110mm thru-axle Boost
- CRANK ARM: Haibike, forged, Aluminium
- BRAKE (FRONT): Tektro, M275, 180 mm, 2-piston disc brake
- BRAKE (REAR): Tektro, M275, 180 mm, 2-piston disc brake
- TUBE: Presta valve
- RIM: Schürmann, Yak25, with eyelets, hollow rim, Aluminium
- CLAMPING RING: Quick release, 34.9 mm
- REAR DERAILLEUR: Shimano, Alivio M3100
- SHIFT LEVER: Shimano, Alivio M3100, Trigger switch, 9 Speed
- BOTTOM BRACKET: Integrated in the motor
- SPROCKET: SunRace, CSM90, 11 – 36 teeth
- CHAIN: KMC, e9S
- CHAINRING: Steel, 38 teeth
- BRAKE LEVER: Tektro, M275, Aluminium
- BRAKE DISC (FRONT): Tektro, TR180
- BRAKE DISC (REAR): Tektro, TR180
- TYRE: Impac, Smart Pac, 57-622, 29″ x 2.25″
- FRONT WHEEL HUB: Haibike, Alu Nabe, 6-bolt standard
- REAR WHEEL HUB: Haibike, Alu Nabe, 6-bolt standard
- SPOKES: Sapim, Leader, Black
- HANDLEBAR: XLC, Topflat, 720 mm
- GRIPS: Haibike, MTB grips
- STEM: XLC, Alu, A-head
- HEADSET: Feimin, A-Head Tapered, Ball bearing
- SADDLE: XLC, MTB
- SEAT POST: XLC, Aluminium, Patent, 31.6 mm
- PEDALS: Freeride Pedal , Aluminium, with Reflector,
- PERMITTED TOTAL WEIGHT: 120.0 kg
