DESCRIPTION

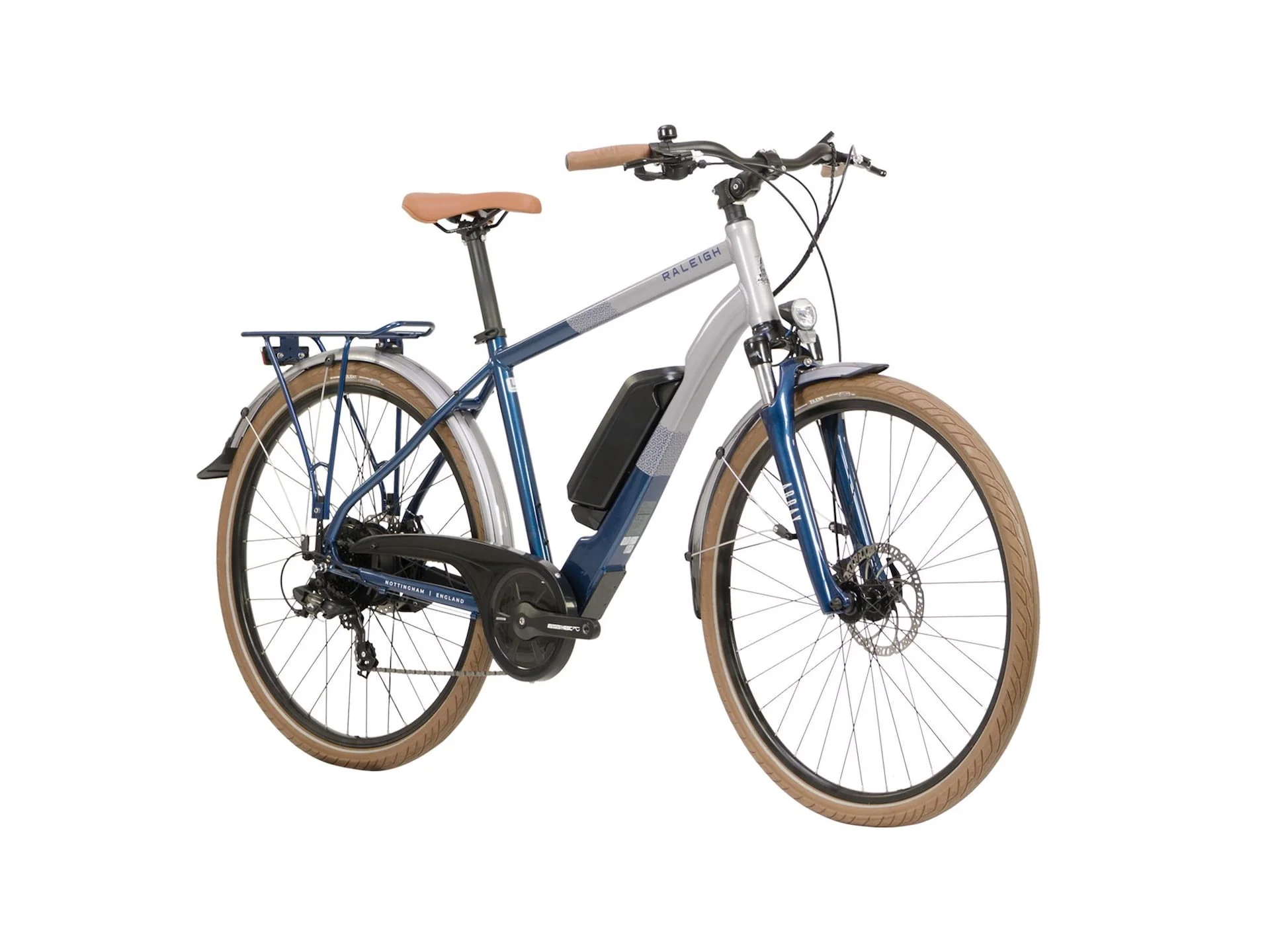

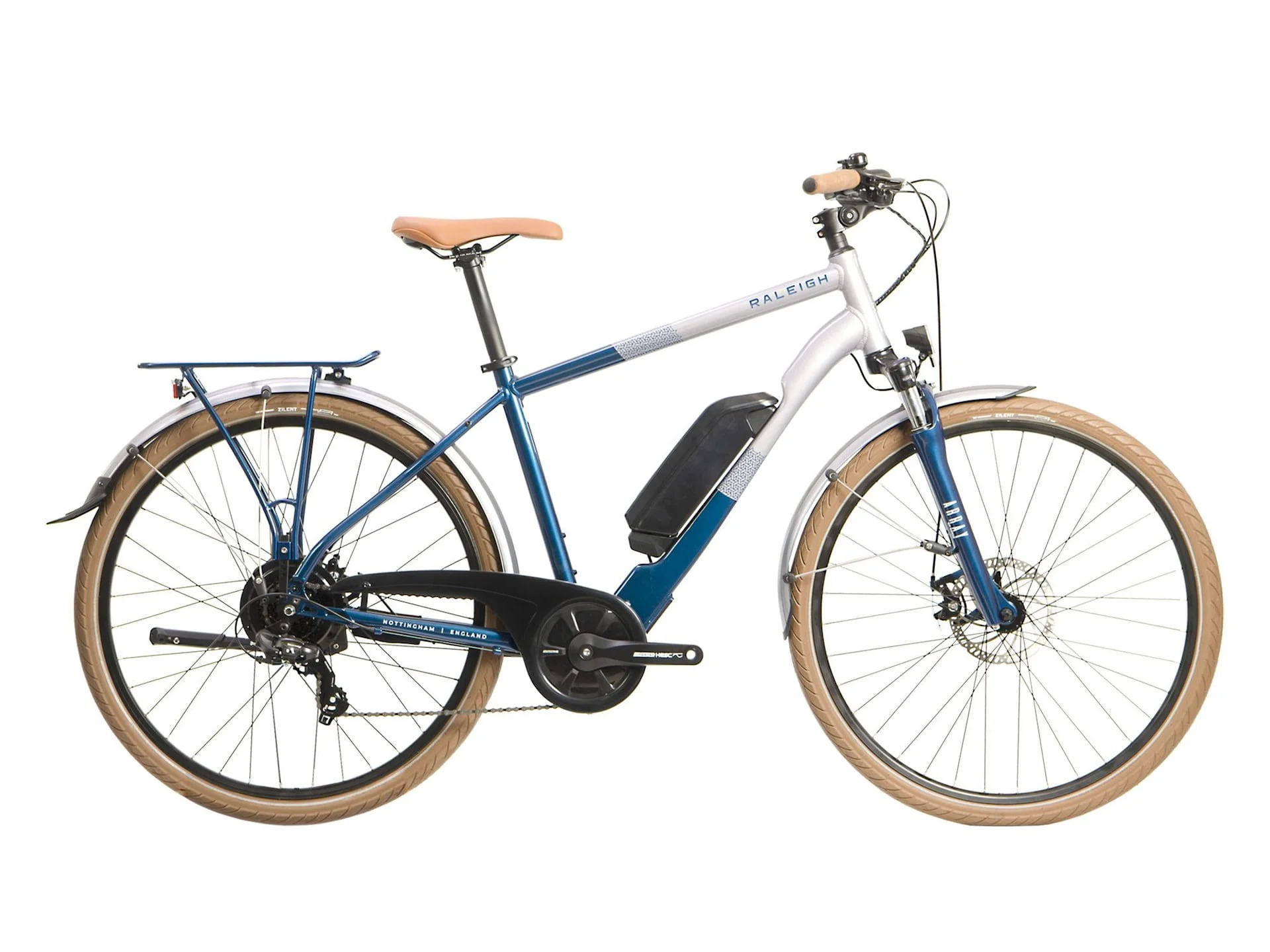

The stepping-stone into the world of electric bikes. The Array is Raleigh’s elegant electric bike option, combining good looks and modern tech, all in an affordable package. Whizzing through the weekday commute or tackling longer trips on the weekend. The Array is ready for it all, and with a 60-mile range it’s ready to go again, and again, and again. Whether you want to rediscover the joy of cycling or just want a little extra push on the Monday morning rush to work, the Array is here to help. A lightweight aluminium frame, smooth Suntour suspension fork, and disk brakes mean your ride can be fun, comfy and reliable – at a realistic e-bike price too.
KEY FEATURES
400WH Battery. Boasting a range of 60 miles on a single charge depending on level of assistance selected. The journey’s just beginning.
Suntour Motor
The super-quiet and discreet Suntour motor delivers all the oomph you need. With 4 power levels available you can choose the assistance delivered on the fly. Make it a workout or a leisurely pootle, the power is in your hands.
Suntour Control Panel

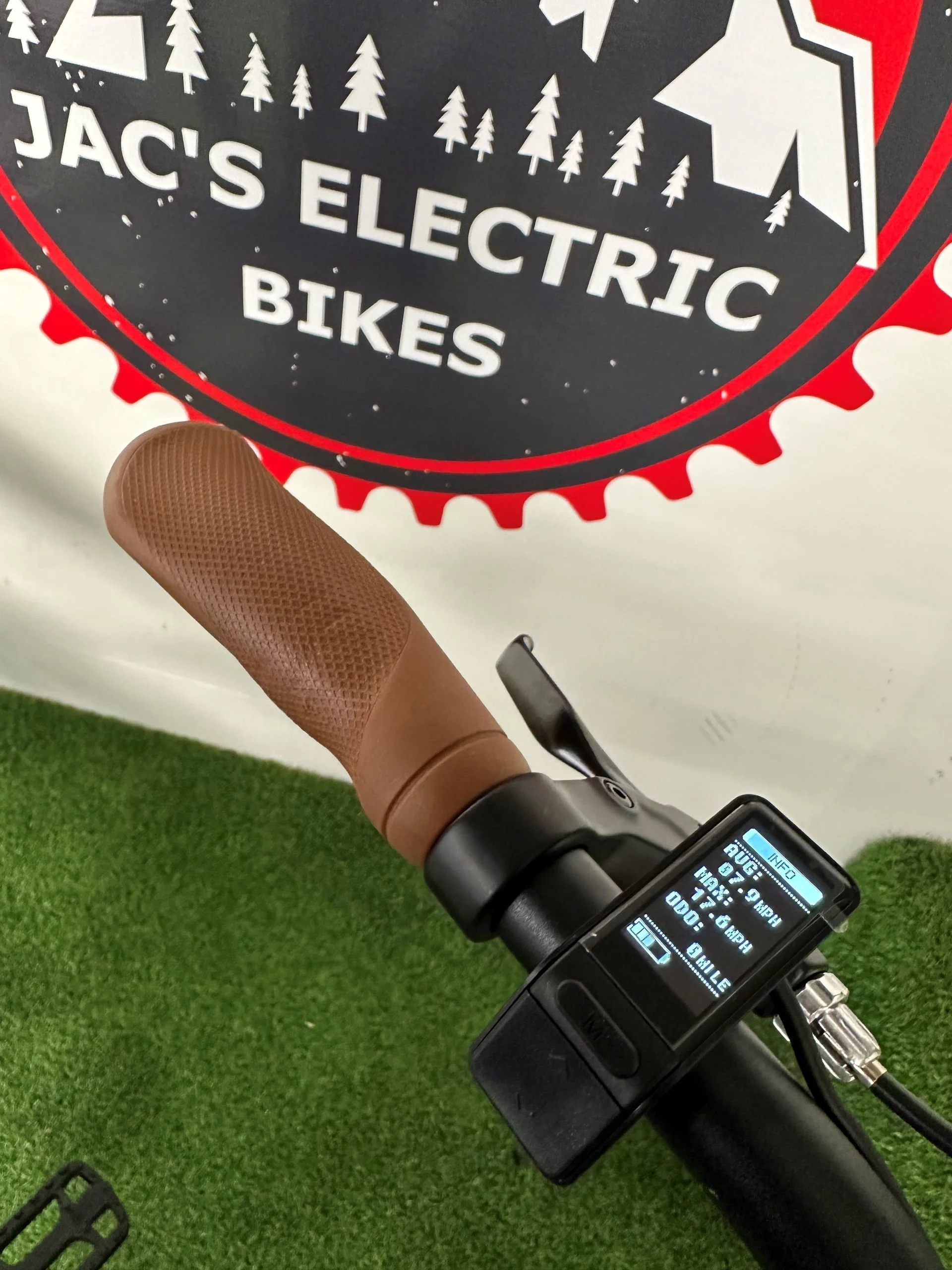

The new OLED Suntour control panel shows all the stats you could ever need, in a super clean and easy to read display. Easily flick between the three different assistance modes at the push of a button on the handlebar.
Frameset : Colour Silver
Fork Type : Suntour Nex-E25 Disc Suspension fork, 63mm travel
Frame Material : Aluminium 6061
Total Bike Weight : 23kg
E-System Battery : Suntour Canbus 400Wh
Battery Charging Time : 5 hours
Battery Integration :External
Battery Watts per Hour :400Wh
Display :Suntour Canbus OLED display
Max Range :60 miles
Motor : Suntour Canbus E25
Motor Position : Rear

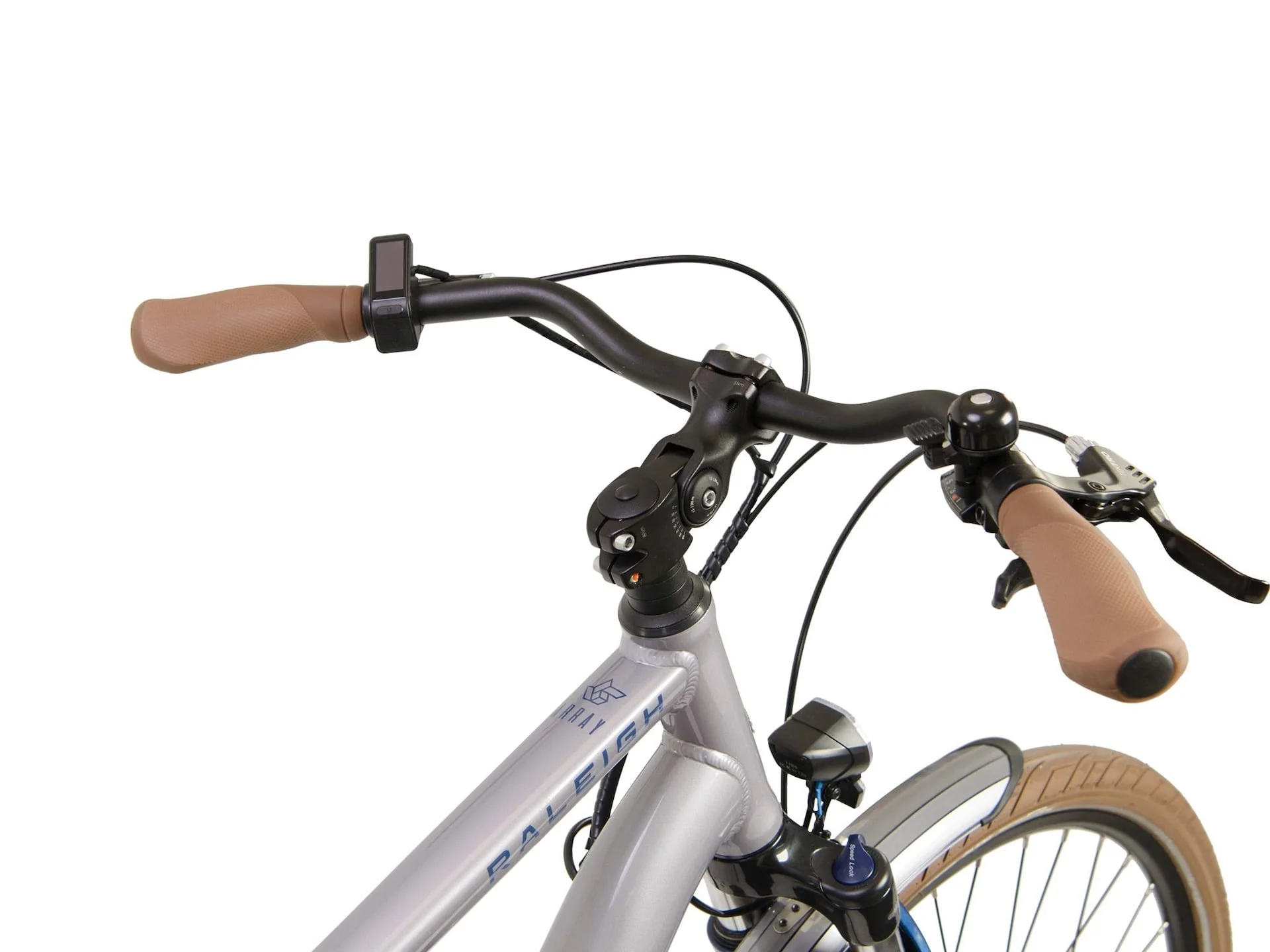

Comfort :Grips
Velo, Ergonomic Comfort Grips, Brown Handlebar

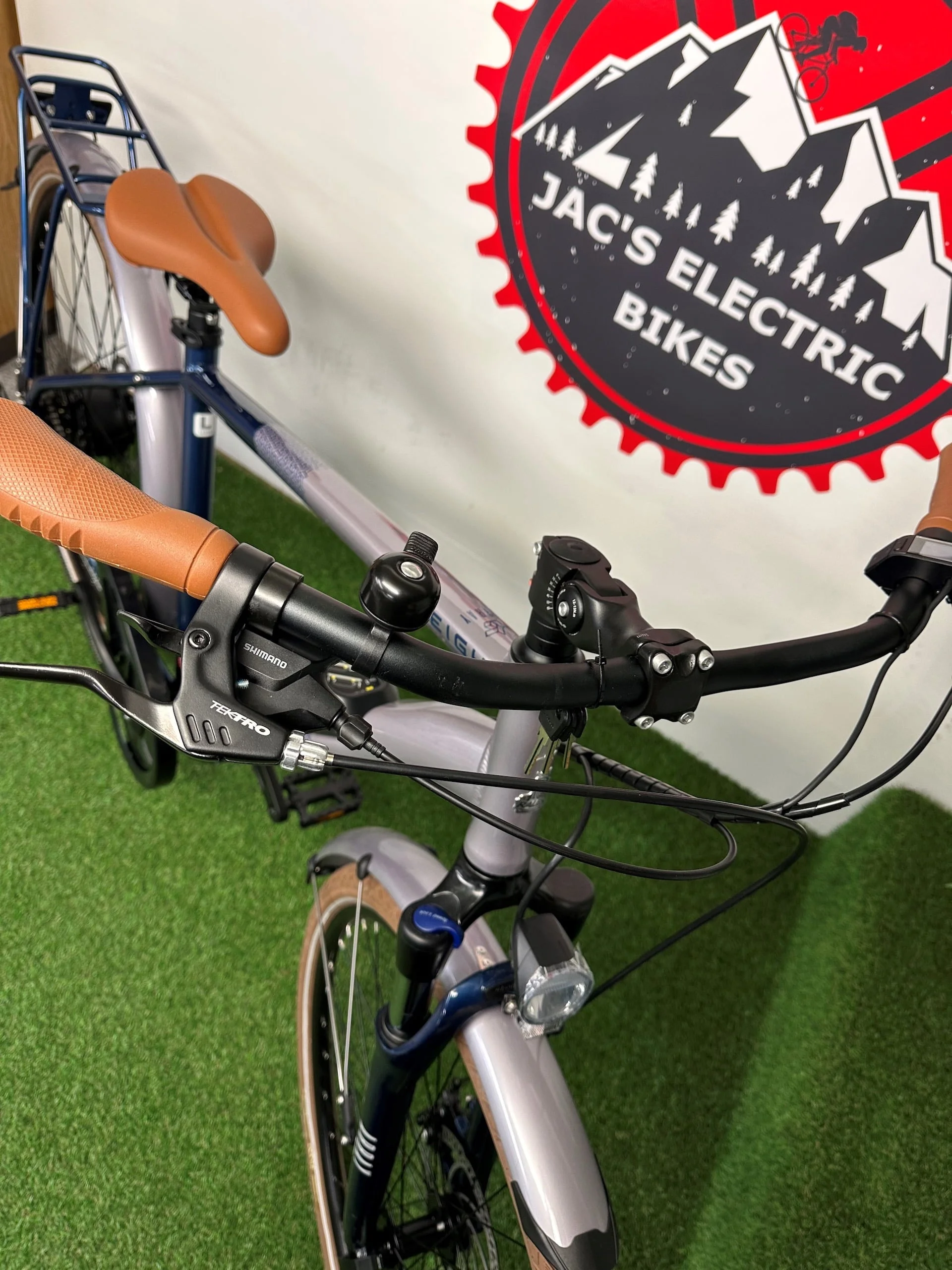

Aluminium Low Rise Handlebar, 620mm
Saddle Velo, VL-6335D2, Brown
Seatpost :Aluminium 31.6x350mm
Seatpost Clamp :Aluminium 34.9mm
Stem Crossbar – Aluminium Adjustable Stem, 90mm
Controls Front Brake
Tektro MD-M280 Mechanical disc brake, 180mm
Number of Gears 7
Rear Brake : Tektro MD-M280 Mechanical disc brake, 180mm
Drivetrain Cassette :Shimano HG200 7 Speed 12-28
Chain : KMC Z7 7 Speed Chain
Chain Guard Description :Plastic Black Chain Guard
Crankset : Suntour EBCW18-ATS 42T 170mm
Front Shifter

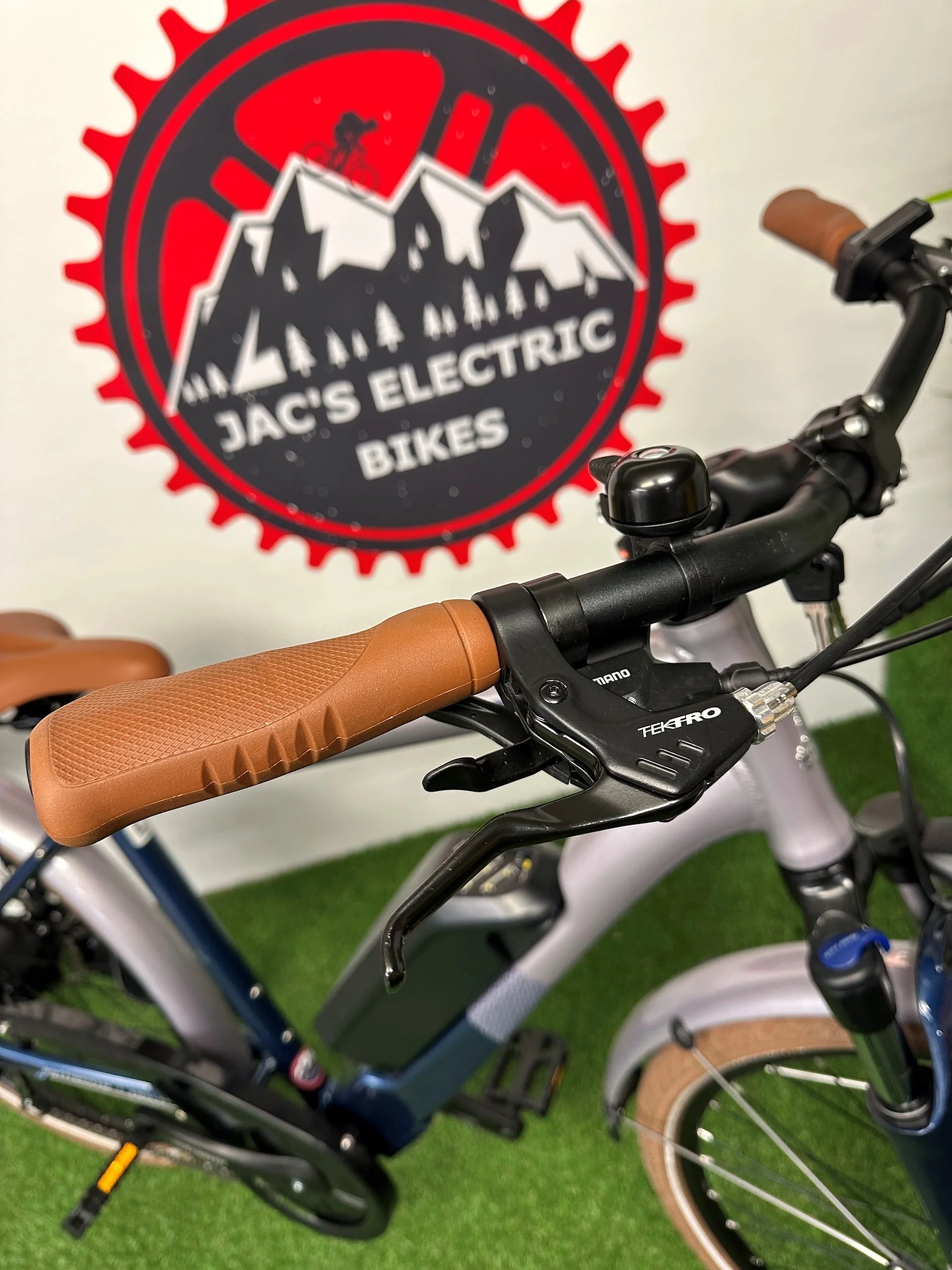

Shimano SL-M315 7 Speed STI shifter
Pedals : Resin

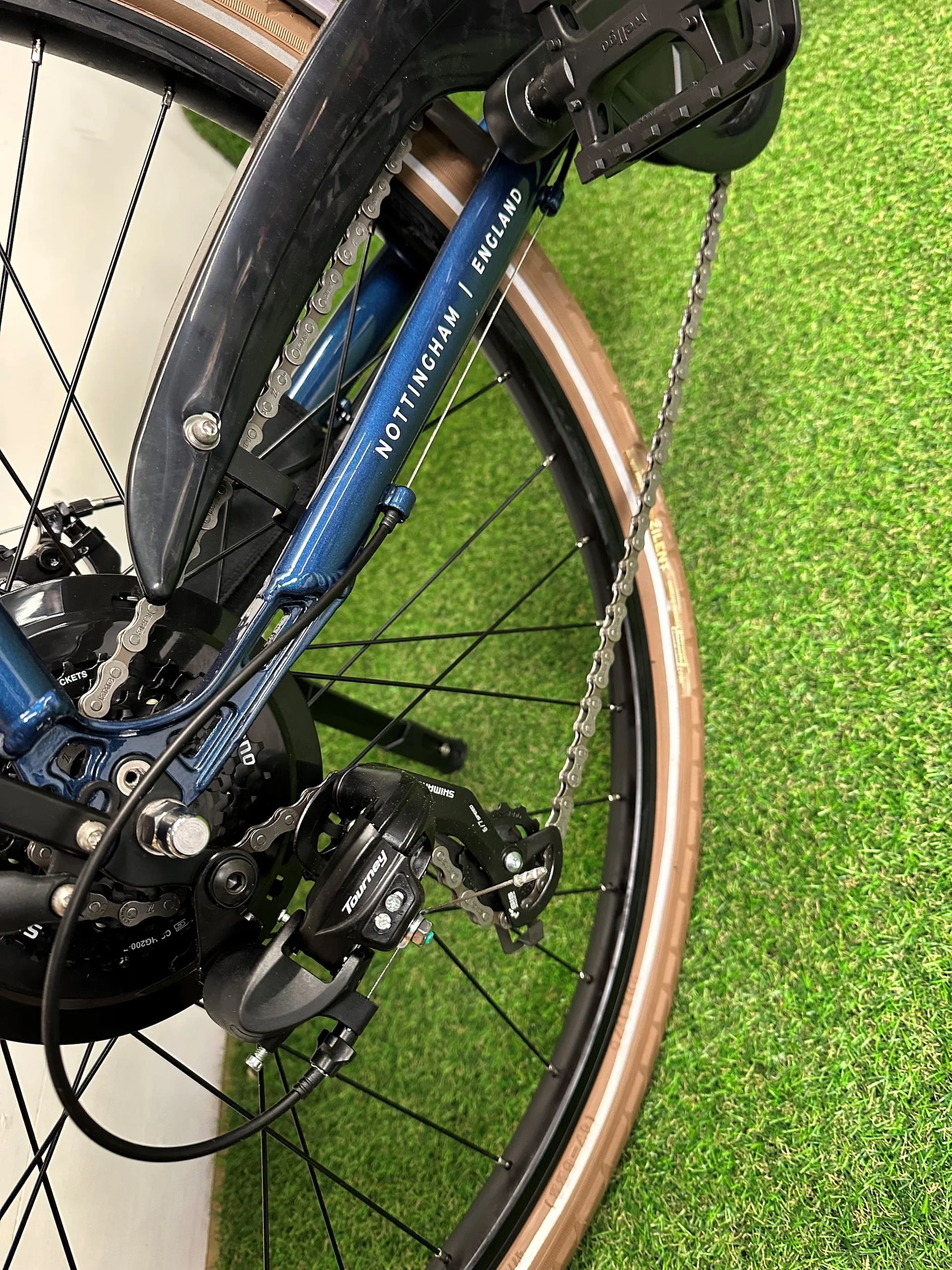

Rear Derailleur : Shimano TY300 7 Speed Rear Derailleur
Wheels :Inner Tubes
700c x 40mm Schrader Valve
Tyres : 700 x 47c Vee Rubber Zient Brown with Reflective Stripe
Wheel size : 700c
Extras : Front Light Comus DHL-F15PRO E-bike Front Light 6V

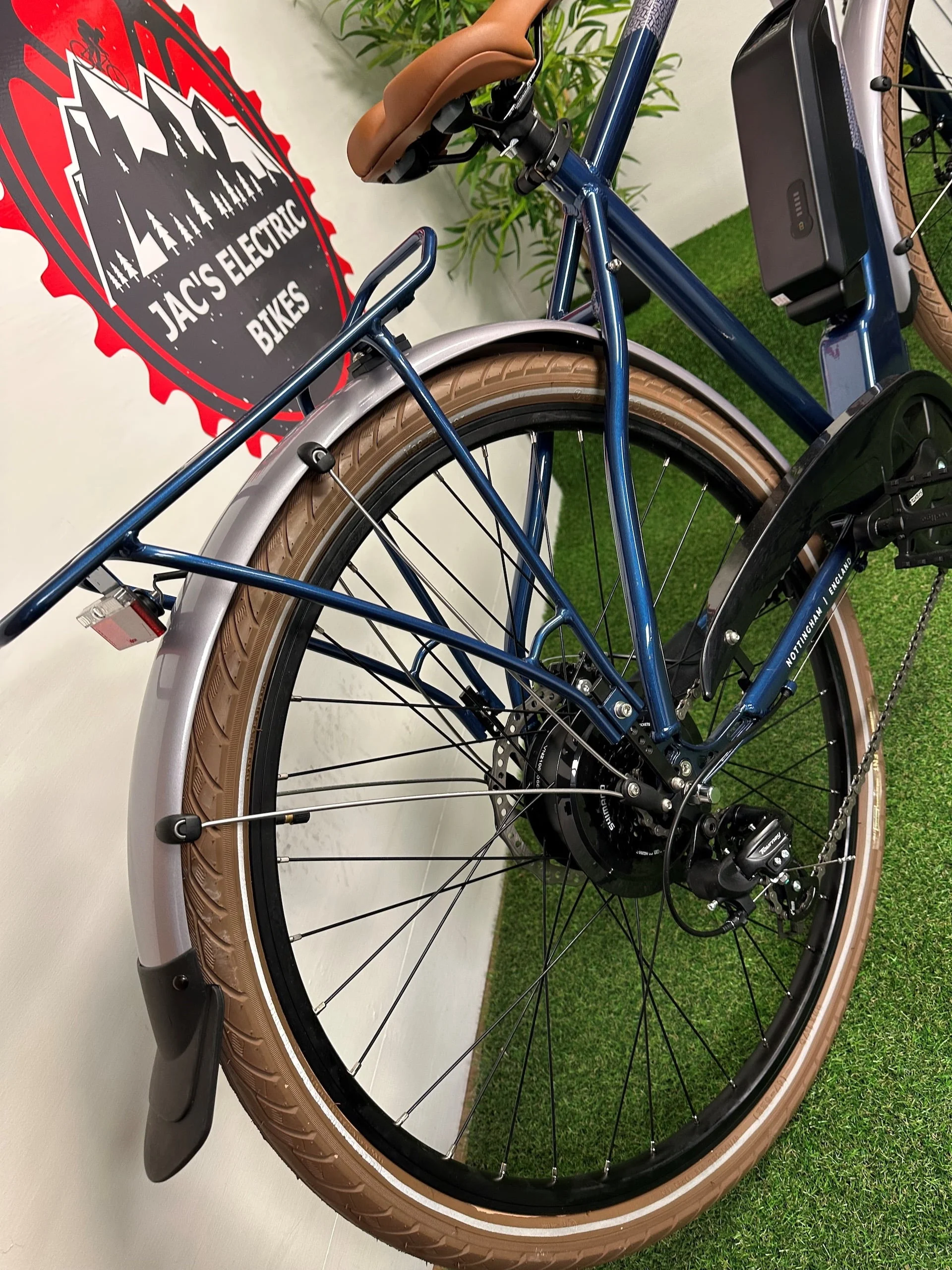

Mudguards : Reinforce SP-56A Full Mudguard Set Plastic Silver

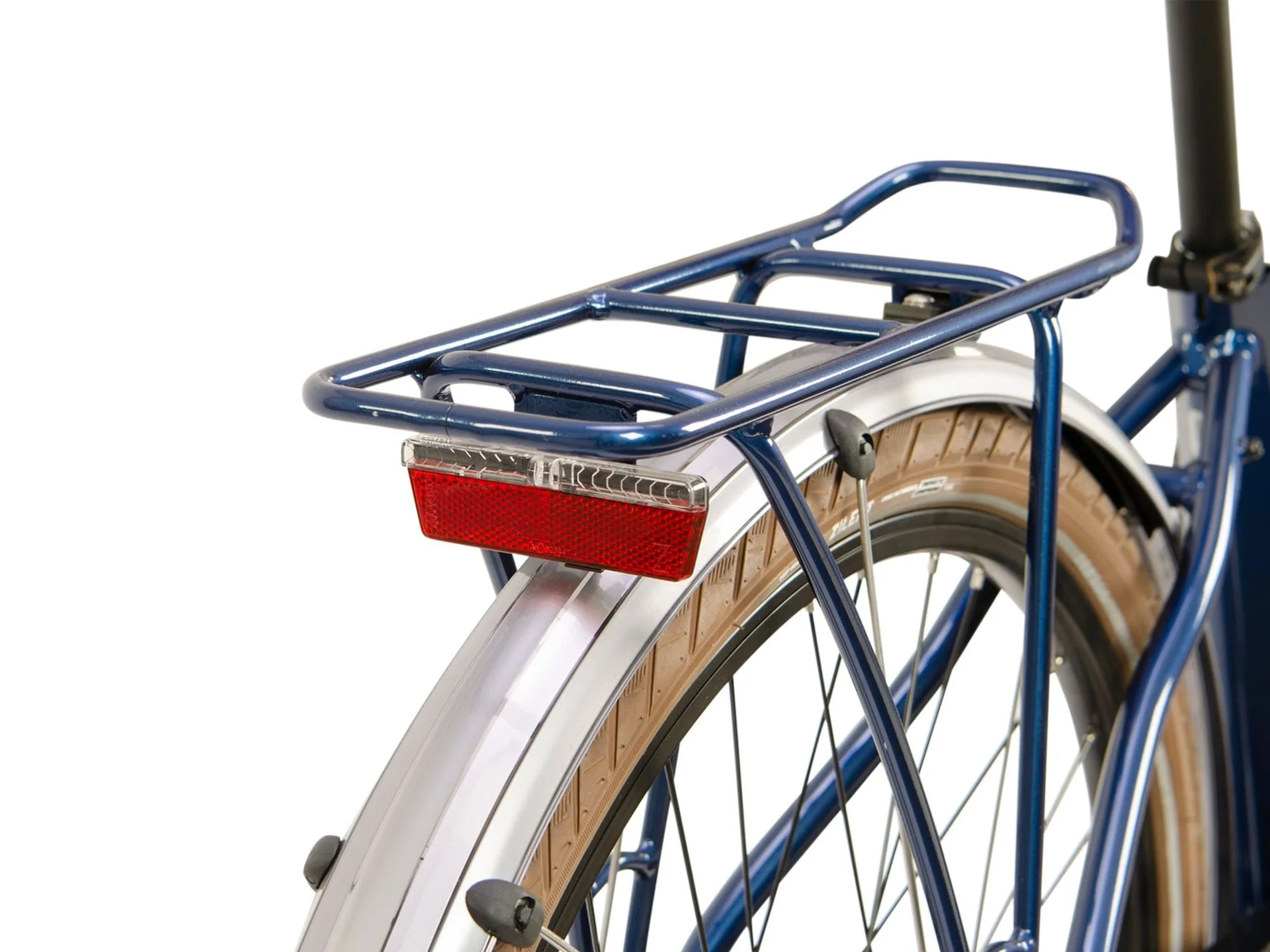

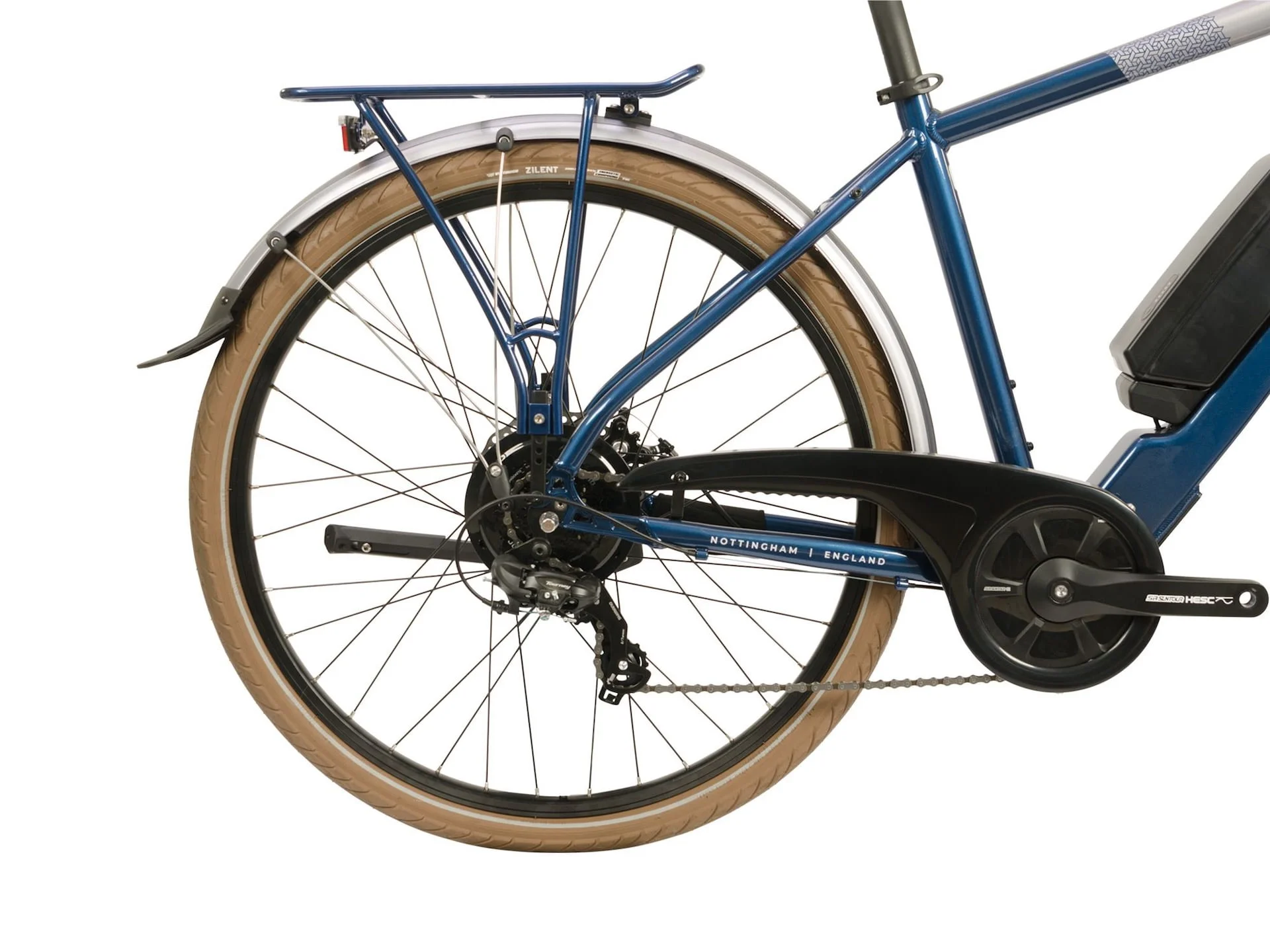

Rear Carrier : Aluminium Max Load 25kg
Rear Light : Comus R-99 E-bike Rear Light 6V
Weight Limits (Rider and Cargo) :120 KG
