RALEIGH ARRAY OPEN FRAME EBIKE
The stepping-stone into the world of electric bikes. The Array is Raleigh’s elegant electric bike option, combining good looks and modern tech, all in an affordable package.
- Suntour Canbus 400WH battery
- 60mile battery range
- Suntour Canbus OLED display
- 3 assist levels
- 7 speed Shimano SL-M315 STI shifter
- Tektro mechanical disc brakes
- Adjustable aluminium handlebar stem
- Ergonomic brown comfort grips
The stepping-stone into the world of electric bikes. The Array is Raleigh’s elegant electric bike option, combining good looks and modern tech, all in an affordable package. Whizzing through the weekday commute or tackling longer trips on the weekend. The Array is ready for it all, and with a 60-mile range it’s ready to go again, and again, and again. Whether you want to rediscover the joy of cycling or just want a little extra push on the Monday morning rush to work, the Array is here to help. A lightweight aluminium frame, smooth Suntour suspension fork, and disk brakes mean your ride can be fun, comfy and reliable – at a realistic e-bike price too.
SPECIFICATIONS
Frameset
Colour: Silver

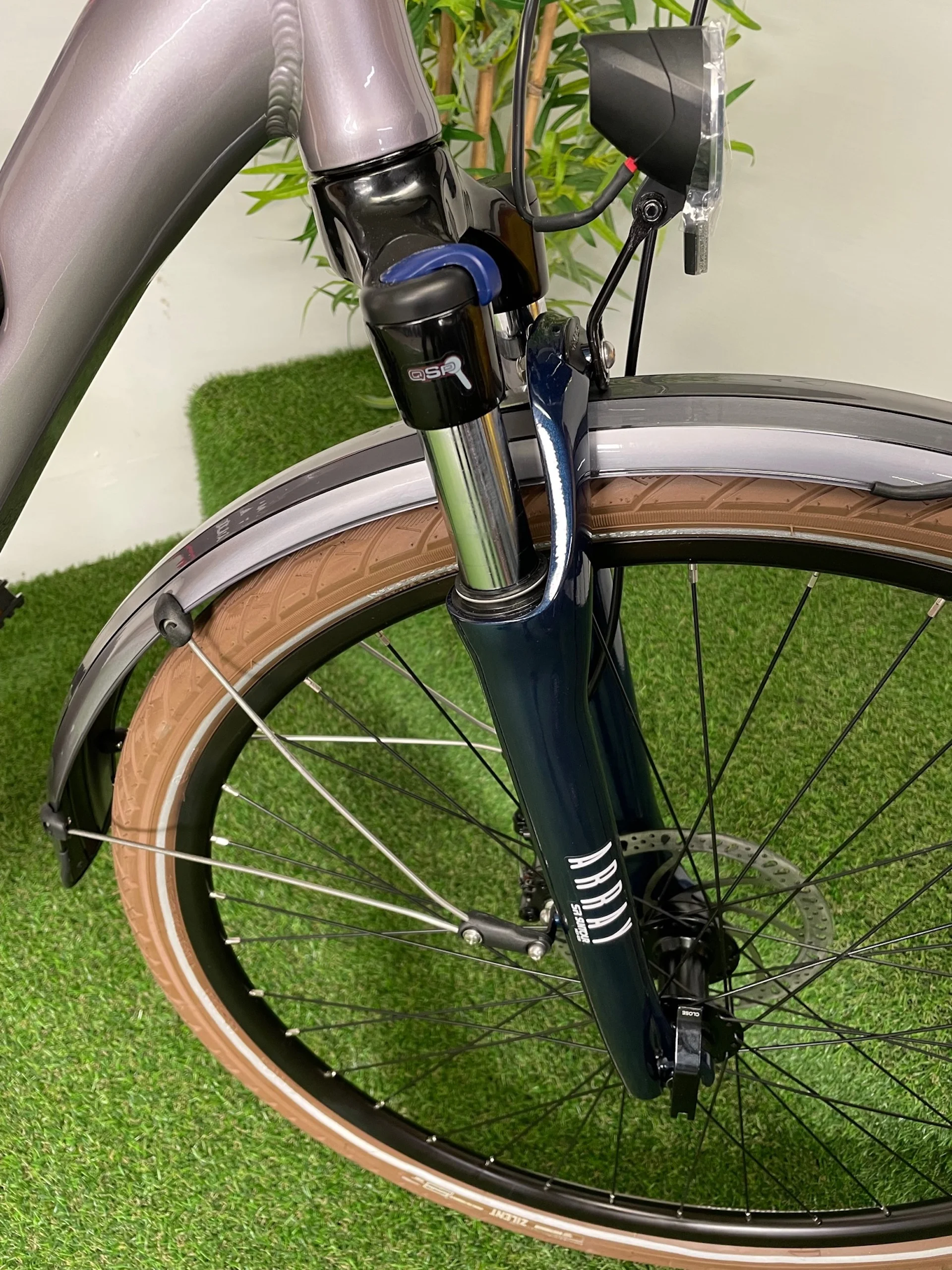

Fork Type: Suntour Nex-E25 Disc Suspension fork, 63mm travel
Frame Material: Aluminium 6061
Total Bike Weight: 23kg
E-System
Battery: Suntour Canbus 400Wh
Battery Charging Time: 5 hours
Battery Integration: External
Battery Watts per Hour: 400Wh
Display: Suntour Canbus OLED display
Max Range: 60 miles
Motor: Suntour Canbus E25
Motor Position: Rear
Comfort
Grips: Velo, Ergonomic Comfort Grips, Brown
Handlebar: Aluminium Low Rise Handlebar, 620mm
Saddle: Velo, VL-6335D2, Brown
Seatpost: Aluminium 31.6x350mm
Seatpost Clamp: Aluminium 34.9mm
Stem: Crossbar – Aluminium Adjustable Stem, 90mm
Controls
Front Brake: Tektro MD-M280 Mechanical disc brake, 180mm
Number of Gears: 7
Rear Brake: Tektro MD-M280 Mechanical disc brake, 180mm
Drivetrain
Wheels
Inner Tubes: 700c x 40mm Schrader Valve
Tyres: 700 x 47c Vee Rubber Zient Brown with Reflective Stripe
Wheel size: 700c
Extras
Front Light: Comus DHL-F15PRO E-bike Front Light 6V
Mudguards: Reinforce SP-56A Full Mudguard Set Plastic Silver
Rear Carrier: Aluminium Max Load 25kg
Rear Light: Comus R-99 E-bike Rear Light 6V
Weight Limits (Rider and Cargo): 120 KG
